The Floor – Warre Hive Construction Guide

Page 3 ↓

Step 3: Attach the Legs

To add some legs to our Warre Hive Floor, we will need to cut the following wood pieces:

  • 4 legs measuring 10cm tall by at least 4cm wide (3 15/16″ tall by at least 1 9/16″ wide) 2×4’s cut to 3 15/16″ tall make good legs.
  • 4 feet measuring 10cm by 10cm square by at maximum 2cm thick (3 15/16″ by 3 15/16″ square by at maximum 13/16″ thick)

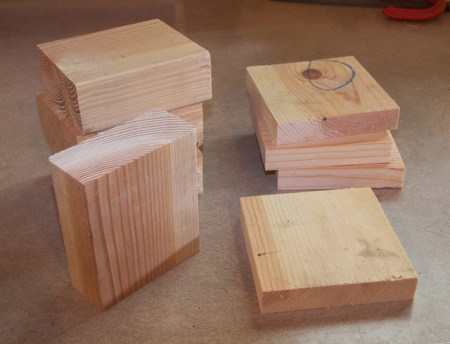

Leg Parts

Take one of the legs and lay one of the feet on it. Center the foot over the post and fasten it in place.

Assembling a Leg

Finish the other three legs in the same manner, attaching the feet of the legs to the posts.

Assembled Legs

Now we can take our four legs and arrange them under the floor. Once you have aligned them to your liking, fasten them in place from the top, fastening through the floor into the legs .

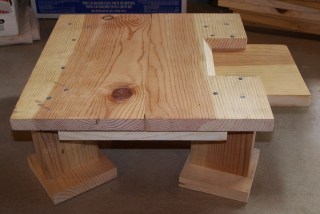

Legs Under the Floor

Here is a view of the underside so you can see how I aligned the feet on my floor.

Underside of Floor

Finished Warre Hive Floor

Congratulations! You have completed the Warre Hive Floor. In the next section, we will build the Warre Hive Box.

Go on to the Warre Hive Box →

Bookmark and Share    add to    add to blinkslist    add to furl    digg this    add to ma.gnolia    stumble it!    add to simpy    seed the vine    add to reddit    add to fark    tailrank this    post to facebook


26 responses to “The Floor – Warre Hive Construction Guide

  1. What is the angle of the hive entrance?

    • john – Good question! I don’t cut my hive entrances to an exact angle, but my average is about 45 degrees.

      Bees can crawl up a 90 degree angle, so you can do away with the chiseling altogether if you want.

  2. thanks for the answer nick i can work
    abit of a slope in now, another question is , can you or would it be adviseable to make the landing board a little bit wider for the bees to land on? saving afew misses.

  3. Logan MacGregor

    The legs are sure fancy, but I just use concrete blocks for my hives. This means no wood-t0-ground contact so I don’t have to deal with rot. Also, my hives get closer to the ground. According to Warre himself (and I have witnessed this myself), bees laden with pollen or honey may land on the ground and need to get back up because the weight of their load. The taller the floor from the ground, the harder this is for the bees. Besides, you can usually find some concrete blocks or bricks laying around somewhere and they are easy to level — just dig the dirt around the bricks until you get it the way you want. Put the floor (sans feet) on the bricks or blocks and you are good to go.

    • Logan – Actually, the legs on the beehive are not that tall…in fact they are the exact height Emile Warre recommends on page 46 of “Beekeeping for All” Concrete blocks can transfer moisture to your beehive, so I don’t like to use them that much. They do provide a very solid base though.

  4. It doesn’t matter. I built two Warre’s like you mentioned, and both refused to build down when I added a new box underneath according to the Warre method. I even baited one by bringing a comb down and they still wouldn’t go. My Kenyan Top Bar Hive is performing beautifully, so I’m sticking with Langstroths and horizontal top bar hives. Sorry, but in my experience Warre isn’t worth the effort. I’ll be giving away my Warre boxes with the observation windows. Nice site, I hope others have better luck but I don’t want to do Warre boxes any more.

  5. so will the bees build their comb down on to the bottom board?

  6. Denise Chevalier

    A small group of us are building 4 hives and it’s going very well, thanks for the plans. About the entrance — the chisel cut is 90 degrees on our floors, how did you get the angle at 45 degrees? It’s a nice detail. Did you rasp it away to 45 after the initial wood removal? Exact description would be appreciated! (Even though it doesn’t matter to the bees…)

    Also, do we need a queen excluder? And are there construction plans for the bee feeder? thanks!

  7. dont forget the landing lights? sorry Have been watching the bee movie too much

  8. Hey Nick,
    Great site, I am in the midst of building my first Warre hive! Question regarding the landing board. Why does it need to be a long as it is and extend all the way underneath and flush with the back edge of the floor? Seems like it could easily be have that length. Great site, answered a lot of questions for an inexperienced woodworker like me. Thanks for the effort!

    • Hi John thanks for the compliments. I build the floor as per the plans by Émile Warré. The landing board is also used as support for holding the 2 floor pieces together. Here’s some food for thought – in the original plans, in beekeeping for all (page 44), the floor consists of 3 boards so the landing board went all the way to the back helping hold all 3 pieces together. The way I build them I have 2 pieces. Could the landing board be shorter because of this? Absolutely…

  9. could you show how to build a screened bottom board for a warre hive

    • Hi Ellis. I have a plan in the works, I just haven’t had a chance to finish it yet. I hope to have it done in the next month so keep checking back.

  10. I tried a couple of years ago with a long Top Bar Hive, with a few frames of bees, but it did not go too well. They did not make it through the winter. The Warre Hive seems like it will be much cozier for the bees, So I am going to try again and hope to get a better start.

    If you are just beginning with your Warre Hive – should you use Two Hive boxes, as I was thinking, reserving the others, or only use One, as shown in the “installing section” and wait to add the second box?

    A local Beek has Nucs with mixed race bees but I don’t really want to start my bees already with large Cell frames. Should I try to order from a small Cell supplier, like those mentioned in the Warre Site, or will a regular package with an Italian Queen serve me just as well? I would prefer to pick them up rather than have them mailed.

    Also with a new Hive, should you start with 2 # or 3# package of bees. I was not certain because the hive is smaller.

  11. Do the boxes just sit free atop one another, and the bottom box not secured to the floor? Seems like it could topple over, but to add boxes below you need to be able to lift bottom box away from the floor.

    • Yes, the boxes are stacked up and not secured to the floor. You’ll be surprised at how heavy boxes filled with honey will get plus the bees will bond the hive boxes together with propolis and you’ll have to break them apart.

    • The roof covers most of the box with the insulation. It is fairly heave you do not need to put them together. In fact, when you try to work in the hive it may be difficult to move the boxes, because the Bees cement them together. (They REALLY do a good job of it)

  12. For Bees, check your local Ag society for newsletter/website and advertising. I managed to find several in-state suppliers when I bought my 2 pkg of Bees. I wanted to pick them up and not have them mailed.
    Installing them is easier said than done (detaching the queen cage & attaching it can be a stinging problem) for your first one any way.

    I tried a couple of years ago with a Kenya hive and a few gift bees but they did not make it through the winder. The will bees like their new Warre home.The only problem I have had is that the combs were not neatly done on the bars, and when I tried to move them some tops came off, So I put some 4″ ends on each bar for my new boxes to help keep them along the bar better, and that is working fine. They are still thriving after their first cold winter. (I did not take any honey their first season)
    I made regular boxes, but after the bees were in I decided I needed to observe them and made m ore boxes. All your relatives and friends will want to take a peek too.

  13. My question about the landing floor /entrance is if it all is fairly close to the ground as Im seeing in the photos dont mice have an easy access to the hive ?

    • Hi Russ, there are always intruders that will try and get into the hive (competing hives, rodents, ants, etc…) as long as the hive is healthy the bees will be able to protect themselves.

      • Hello Nick, Tx for the reply. Didn’t know a bee could take on a mouse. I have noted that the lang type hives have a very restricted entrance to limit mice Im guessing. Tx Russ

        • One bee probably couldn’t stop a mouse but a group of them can defend the hive quite well. With that said, mouse guards do come in handy in the fall when it’s getting cold to keep mice from trying to nest in a warm hive. One of the biggest feral hives I’ve ever seen was in an old couch that had been sitting in a barn. There were mice living in the couch as well but they were nowhere near the comb, there are no “Mouse Guards” or “Reduced Entrances” in a natural environment 😉

  14. When discussing the floor of the People’s Hive, Emile Warré states: “It is not without reason that we have given the entrance to the People’s Hive the following size: 120×15 mm.” (p.48, English translation). Yours seems to be aprox. 120x50mm. Is there a reason for this?

    • Hi Ricardo, the callout on the wood used is 1″ thick and actually measures about 3/4″. That gives a 19mm opening. I’m not sure where you see 50mm but that would be quite huge!

  15. Hi Russ. The size of the entrance depicted here is bigger than the size recommended by Warré, which in my opinion, could be a problem.

    When discussing the floor of the People’s Hive, Emile Warré states: “It is not without reason that we have given the entrance to the People’s Hive the following size: 120×15 mm. […] Of course, in winter, we reduce this entrance further. A metal entrance has an opening of only 70 x 7.5 mm to prevent the entry of rodents. Moreover, in winter there are not that many bee sorties. This opening serves, so to speak, only for ventilating the hive.” (p.48, English translation).

    I build my hives with the exact measures suggested by Warré and I haven´t had any problems with rodents so far.
